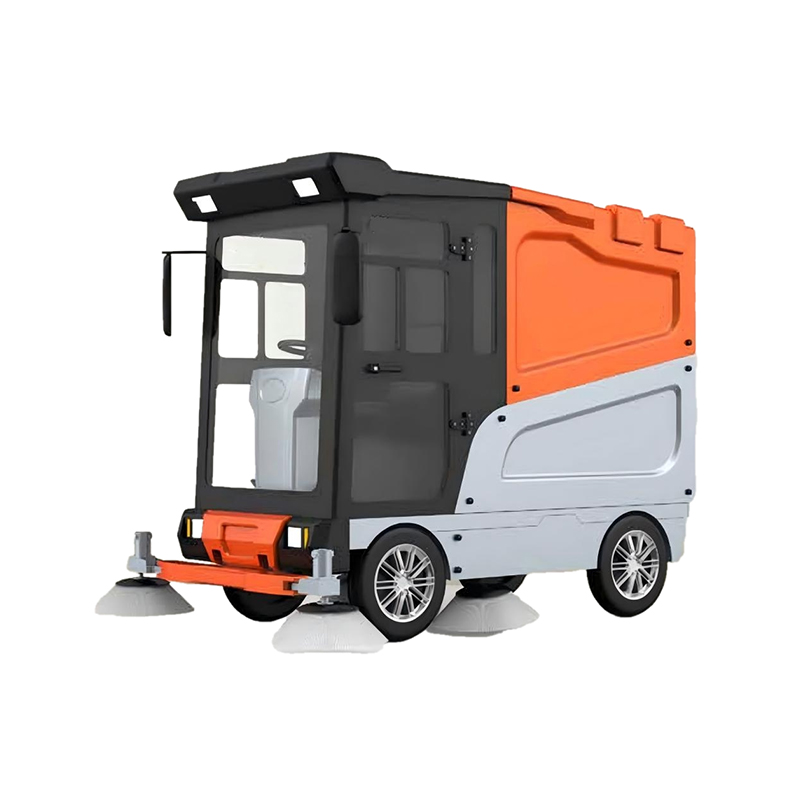

Product Positioning: A high-efficiency electric sweeper targeting municipal sanitation and community cleaning, integrating continuous operation, large-capacity collection, and energy conservation. Designed specifically to meet the routine cleaning needs of large areas.

Key Highlights:

Four-Brush Linkage System: Employs four main brushes operating simultaneously and continuously, resulting in low-cost wear parts and significantly improved cleaning efficiency.

Large-Capacity Integrated Design: Equipped with a 240L waste bin, featuring a quick-loading and unloading structure, supporting extended continuous operation.

Green Power Configuration: Supports maintenance-free batteries of 150AH or higher, or brand-name lithium batteries, offering energy efficiency, environmental friendliness, and long-lasting battery life.

Versatile Cleaning Capabilities: Easily handles various types of waste such as pebbles, cans, and fallen leaves, offering flexible and convenient operation.

Applicable Scenarios: Suitable for daily cleaning operations in medium to large outdoor locations such as streets, communities, schools, and factories. Particularly suitable for cleaning scenarios with complex waste types, large operating areas, and high requirements for equipment endurance.

Model	JCG-2400
Sweeping width	>2100 mm
Work efficiency	>19000（m2/h）
Gradeability	25-30（%）
Main brush length	800mm
Power source	48（v）
Continuous working time	6-8（h）
Garbage bin capacity	240（L）
Water tank capacity	200L optional
Driving power (motor)	3000（w）
Operating power (motor)	Main brushes 1200W × 2 + Fan motors 310W × 2 + Side brushes 100W × 4 + Vibration dusting motors 100W × 2
Total power turning radius of equipment	<3000（mm）
Maximum working speed	11（km/h）
Size (lengthwidth height)	280020502000（mm）
Net weight	1080（kg）
