Product Positioning: A multi-functional scissor lift handling machine with both manual (ACX 10M) and electric (ACX 10E) drive, integrating pallet handling, lifting operations, and workbench functions to meet the efficient flow needs of small to medium-sized materials in various scenarios.

Key Highlights:

Multi-functional Integrated Design: Can be used as a lifting platform, sorting table, workbench, or standard manual pallet cart, achieving multiple functions in one machine;

High-strength Structure: Utilizes Cosco reinforced fork tips and a reinforced chassis, ensuring a long service life;

Ergonomic Operation: Comfortable ergonomic handle design with thickened grip area;

Single-cylinder Simplified Structure: Driven by a single hydraulic cylinder, resulting in a robust structure and minimal maintenance requirements;

Core Performance Parameters: Load capacity 1000kg (2200lbs), maximum lifting height 800mm (31.5 inches).

Applicable scenarios: Palletized goods handling in warehousing and logistics, material lifting and docking on production lines, workshop maintenance workbenches, temporary storage operations in logistics sorting areas, etc., especially suitable for small and medium-sized operating environments that require frequent switching between handling and lifting functions.

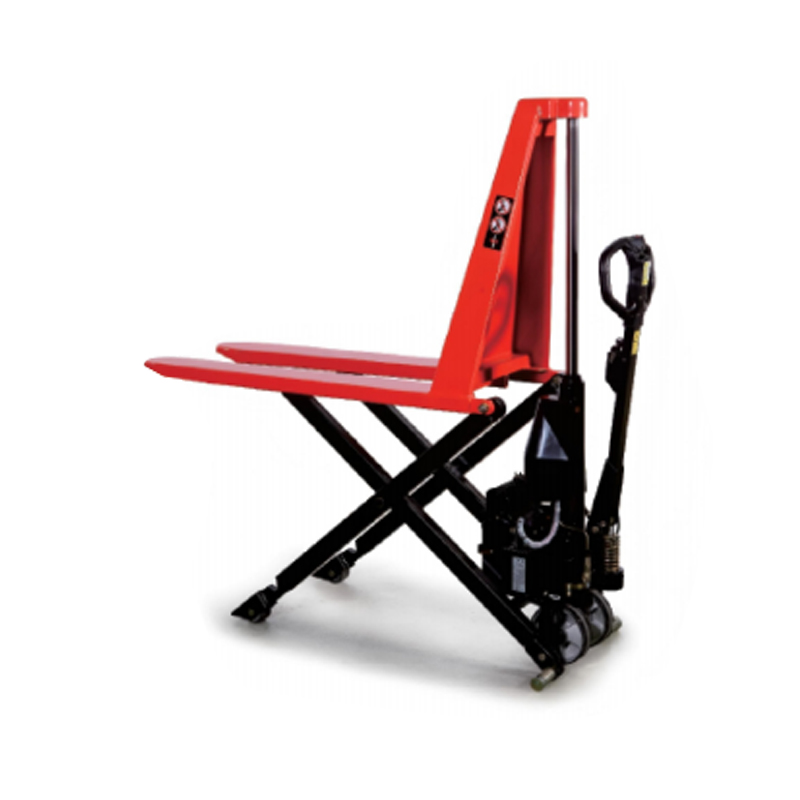

Single Cylinder Manual Scissor Lifter
Model		ACX 10M
Capacity	kg	1000
Fork Height Raised	mm	800
Fork Height Lowered	mm	85
Fork Length	mm	1170
Fork Width	mm	160
Width Across Forks	mm	540	680
Width Between Forks	mm	200	370
Caster Dia. Caster Material	mm	180 Polyurethane

Overall Length	mm	1730
Overall Width	mm	585	710
Overll Height	mm	1270
